Maks. Memori : 128GB
Lain-lain :
- Supports Intel® Virtual RAID on CPU (VROC)
- Supports Intel® 14 nm CPU
- Supports Intel® Turbo Boost Max Technology 3.0
- Supports Intel® Extreme Memory Profile (XMP)
- Supports NVIDIA® 3-Way SLI™ Technology
- Supports NVIDIA® 2-Way SLI™ Technology
- Supports AMD 3-Way CrossFireX™ Technology
- Supports AMD 2-Way CrossFireX Technology
- Intel® Rapid Storage Technology supports
- Intel® Optane™ Memory Ready
- Bluetooth® 5.0
- Clear CMOS button
- Extreme Engine Digi+
- ROG Extreme OC kit
- ProbeIt
- ROG Exclusive
- ROG DIMM.2 module with heatsink
- ROG Aluminum heatsink cover
- OC Design - ASUS PRO Clock II Technology
- ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5
- LiveDash OLED
- AURA
- ASUS Exclusive
- ASUS EZ DIY
- ASUS Q-Design
- Operating System : Windows® 10 64-bit
Audio :
- ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS®SABRE9018Q2C DAC/AMP
- Supports up to 32-Bit/192kHz playback
- Optical S/PDIF out port(s) at back panel
- LED-illuminated design
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
- Manageability : WfM 2.0, WOL by PME, PXE
USB :
- 1 x USB 3.1 Gen 2 front panel connector port(s)
- 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , 1 x Type-A+1 x Type-C)
- 8 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, Type-A, 4 at mid-board)
- 6 x USB 3.1 Gen 1 port(s) (6 at back panel, blue)
- 4 x USB 2.0 port(s) (4 at mid-board)
Kesesuaian RAID : 0/1/5/10
Kesesuaian Memori : DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

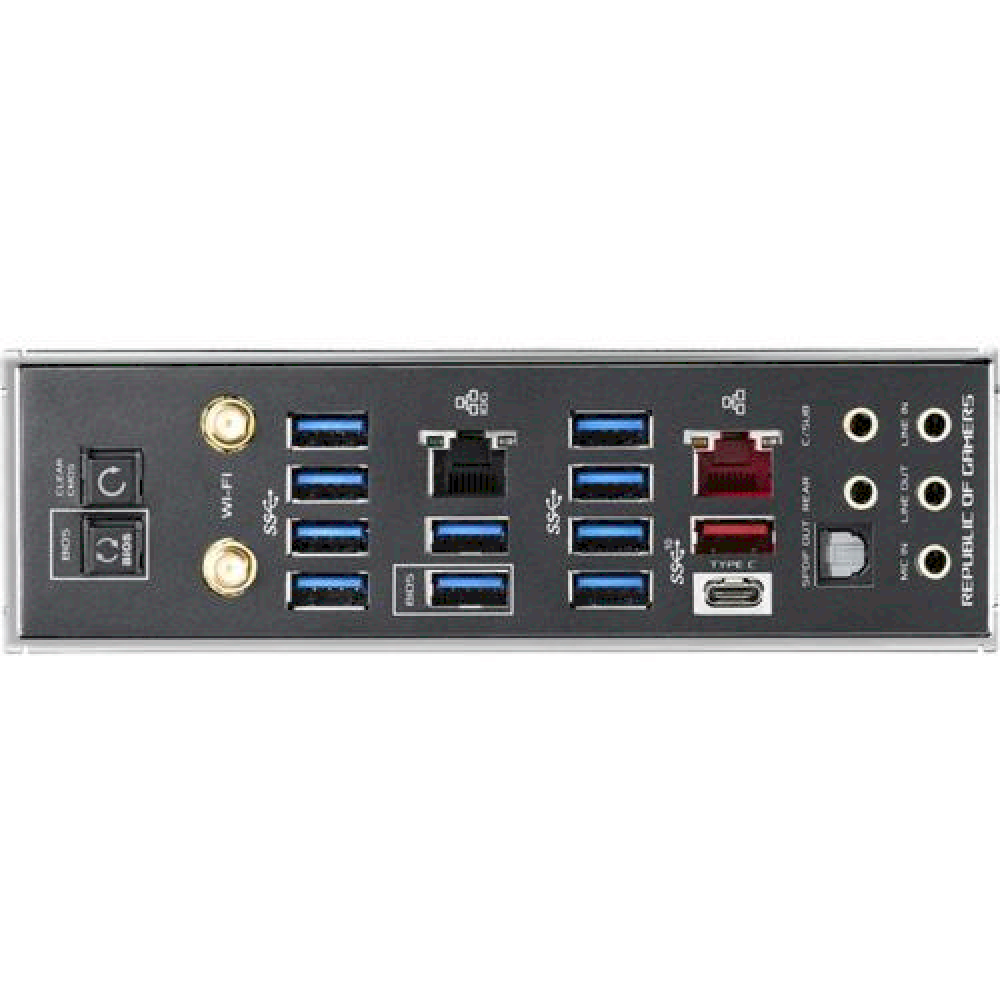

External I/O :
- 2 x USB 3.1 Gen 2 Type-A + USB Type-CTM
- 10 x USB 3.1 Gen 1 (blue)
- 1 x Optical S/PDIF out
- 1 x Clear CMOS button(s)
- 1 x USB BIOS Flashback® Button(s)
- 1 x ASUS Wi-Fi Module
- 5 x LED-illuminated audio jacks
- 1 x Aquantia AQC-107 10G LAN port
- Anti-surge LAN (RJ45) port
Expansion Slots :
- 3 x PCIe 3.0 x16 (x16, x16/x16, x16/x8/x8)
- 3 x PCIe 3.0 x16 (x16, x16/x8, x8/x8/x8)
- 1 x PCIe 3.0 x4
Wireless LAN :
- Intel® Wireless-AC 9260
- Wi-Fi 802.11 a/b/g/n/ac
- Supports dual band frequency 2.4/5 GHz
- Supports MU-MIMO
- Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
Internal I/O :
- 1 x W_PUMP+ 1
- 1 x W_PUMP+ 2
- 1 x WB_SENSOR
- 1 x Aura Addressable Strip Header(s)
- 1 x U.2 port
- 2 x Aura RGB Strip Headers
- 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 6 x SATA 6Gb/s connector(s)
- 1 x VROC_HW_Key
- 1 x CPU Fan connector(s)
- 1 x CPU OPT Fan connector(s)
- 3 x Chassis Fan connector(s)
- 1 x H_AMP fan connector
- 1 x 24-pin EATX Power connector(s)
- 2 x 8-pin EATX 12V Power connectors
- 1 x 4-pin EZ_PLUG Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x MemOK! II switch(es)
- 1 x Slow Mode switch(es)
- 10 x ProbeIt Measurement Points
- 1 x Reset button(s)
- 1 x BIOS Switch button(s)
- 1 x Node Connector(s)
- 1 x LN2 Mode jumper(s)
- 1 x Safe Boot button
- 1 x ReTry button
- 1 x System panel connector
- 2 x T_Sensor Connector
- 1 x W_IN header
- 1 x W_OUT header
- 1 x W_FLOW header
- 1 x Start button
- 1 x USB 3.1 Gen 2 front panel connector
- 1 x Speaker connector
- 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)
- 1 x PAUSE Switch
- 2 x RSVD Switch
CPU Socket : Socket 2066
LAN :
- Aquantia AQC-107 10G
- Intel® I219V
- Anti-surge LANGuard
- ROG GameFirst Technology
BIOS : 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0
DIMM Sockets : 8 x DDR4 DIMM Slots
Form Factor : Extended ATX
Serial ATA Controller :
- 1 x ROG DIMM.2 Module support(CPU_DIMM.2), with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*1
- 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2
- 1 x U.2 port
- 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
- 6 x SATA 6Gb/s port(s)
